This Mean Well PHP-3500-24 is a high-power open-frame switching mode power supply rated at up to 3500W with a 24VDC output. It accepts a wide AC input range (100-120VAC or 200-240VAC, 50/60Hz) and delivers up to 145A at 24VDC when operated on 200-240VAC input, making it suitable for demanding industrial and battery-charging applications. The unit shows typical signs of prior use including surface scuffs and minor residue, but appears structurally sound with no visible damage to the PCB or terminals. Certifications include CE, cULus, EAC, and TUV.
| Equipment type | Switching Mode Power Supply (SMPS) |
| Manufacturer | Mean Well Enterprises Co., Ltd. |
| Model number | PHP-3500-24 |
| Serial number | RB99127015 |

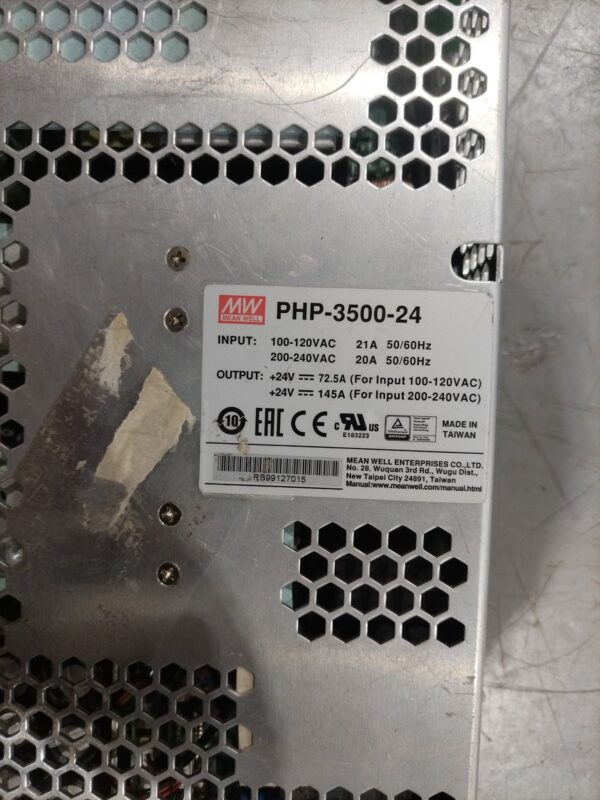

| Rated specs | Input: 100-120VAC 21A 50/60Hz / 200-240VAC 20A 50/60Hz; Output: +24VDC 72.5A (100-120VAC input) / +24VDC 145A (200-240VAC input); Max output ~3480W |

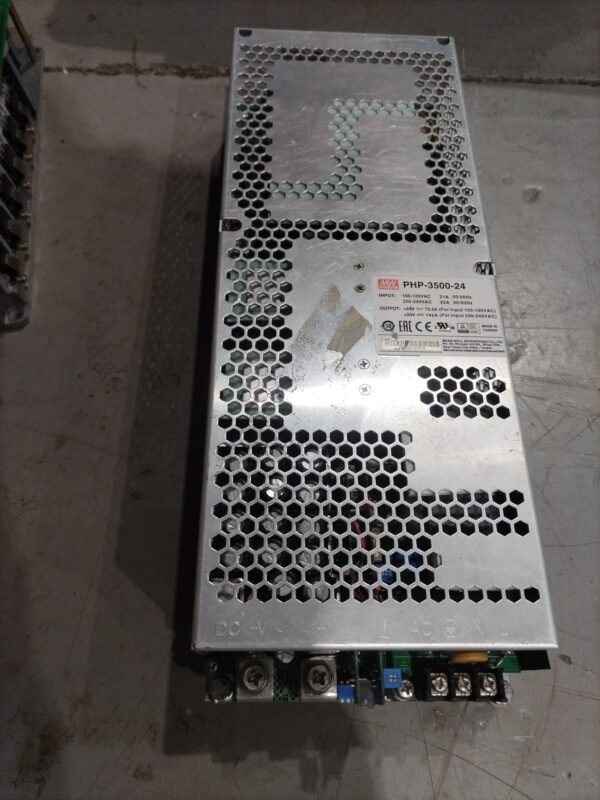

| Condition | General surface scuffing and scratches on the aluminium chassis consistent with used/workshop handling. Some residue or tape remnant visible near the data plate. Hex-pattern ventilation perforations appear unobstructed. Terminal block and PCB visible at the base appear intact. No obvious physical damage, dents, or burnt areas visible. Overall appears serviceable. |
⚠ Shipping is not included in the listed price.
This is second-hand equipment being sold as-is. Local pickup is available at no charge. For courier/freight delivery, please contact us for a shipping quote before completing your order — calvin.coetzee@batterypowered.co.za / +27 72 370 9080.
This is second-hand equipment being sold as-is. Local pickup is available at no charge. For courier/freight delivery, please contact us for a shipping quote before completing your order — calvin.coetzee@batterypowered.co.za / +27 72 370 9080.
