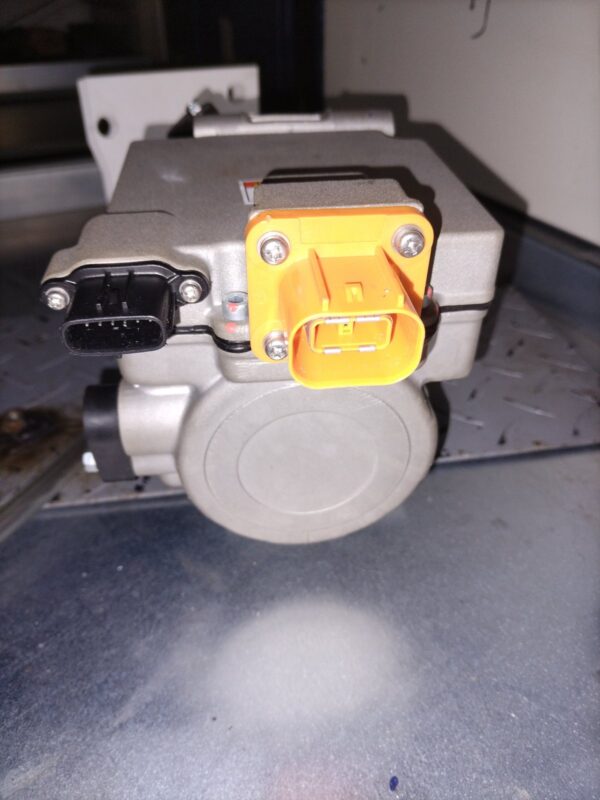

Chinese OEM high-voltage electric scroll compressor designed for EV, HEV, and PHEV air-conditioning systems, rated at 4.6kW cooling capacity on R134a refrigerant with a wide DC 400–750V input range and variable speed from 2000–6000 RPM. Features an orange high-voltage power connector with interlock and a multi-pin CAN/PWM signal connector, and is pre-filled with ZEROL ESTER 68 Hybrid compressor oil. The unit is in near-new visual condition with no observable damage to housing, connectors, or mounting points. Suitable for EV conversion projects, electric bus/truck HVAC systems, and battery-electric mining or industrial vehicle applications.
| Equipment type | Electric Scroll AC Compressor (EV/HEV High-Voltage) |
| Manufacturer | Unknown (Chinese OEM — production licence XK06-015-01080; manufacturer not named on plate) |
| Model number | DM27A3-G2213X |
| Serial number | 332002E32213X |

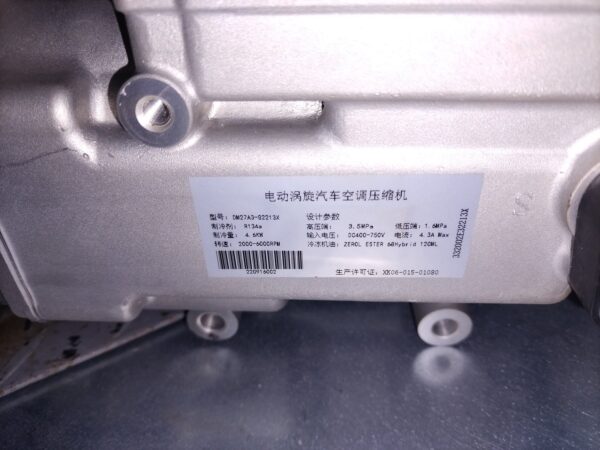

| Rated specs | 4.6kW cooling, DC 400–750V, 4.3A max, R134a, 2000–6000 RPM, High-side 3.5MPa / Low-side 1.6MPa, Oil: ZEROL ESTER 68 Hybrid 120ml |
| Estimated year | 2022 (barcode batch number 220916002 suggests manufacture date September 2022) |
| Condition | Appears in very good to excellent condition. Silver/grey die-cast aluminium housing shows no visible corrosion, dents, or mechanical damage. Black multi-pin signal connector and orange high-voltage power connector (with HV interlock) both appear intact and undamaged. Mounting feet visible and unbroken. Overall presentation is near-new. |
⚠ Shipping is not included in the listed price.
This is second-hand equipment being sold as-is. Local pickup is available at no charge. For courier/freight delivery, please contact us for a shipping quote before completing your order — calvin.coetzee@batterypowered.co.za / +27 72 370 9080.
This is second-hand equipment being sold as-is. Local pickup is available at no charge. For courier/freight delivery, please contact us for a shipping quote before completing your order — calvin.coetzee@batterypowered.co.za / +27 72 370 9080.
