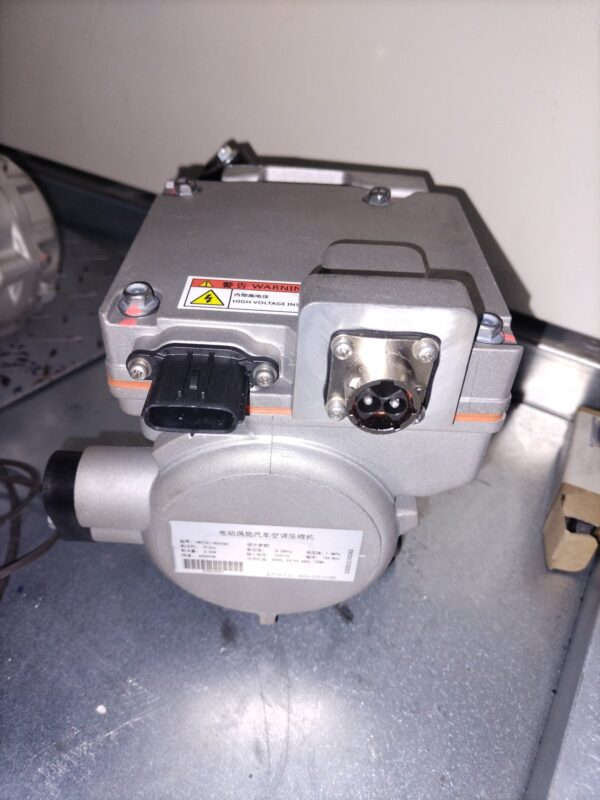

Shanghai Benling DM27A1-B0336X electric scroll compressor designed for high-voltage electric and hybrid vehicle air conditioning systems. Rated at 3.5kW cooling capacity, DC 312V input, 10A max current, 6000RPM, using R134a refrigerant with high-side pressure of 3.5MPa. The unit features an integrated brushless DC motor and inverter/controller in a compact aluminium housing, and includes both the signal/CAN connector and high-voltage power connector. Condition is good — no visible damage, corrosion, or missing components.
| Equipment type | Electric Scroll AC Compressor (EV/High-Voltage) |
| Manufacturer | Shanghai Benling Scroll Compressor Co., Ltd. |
| Model number | DM27A1-B0336X |
| Serial number | 332021E10336X |

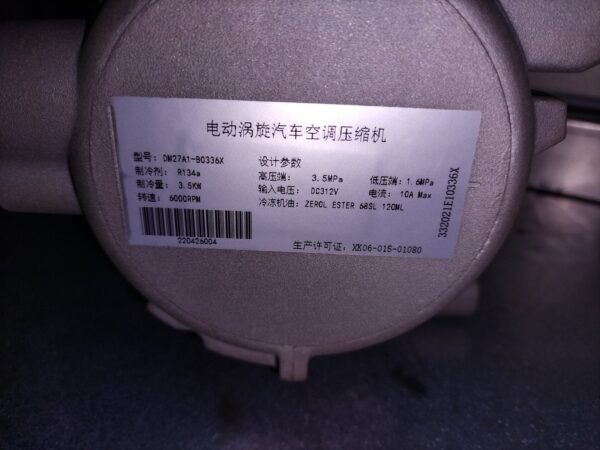

| Rated specs | 3.5kW cooling, DC 312V, 10A Max, 6000RPM, R134a refrigerant, High side 3.5MPa, Low side 1.6MPa, 27cc displacement |
| Estimated year | 2022 |
| Condition | Generally good cosmetic condition. Silver/grey cast aluminium housing appears clean with no visible corrosion, cracks, or physical damage. Orange O-ring seals on refrigerant ports appear intact. Warning label and data plate sticker are present and legible. Both connectors (CAN/signal and high-voltage power) are present. Appears to have seen light use or storage. |
⚠ Shipping is not included in the listed price.
This is second-hand equipment being sold as-is. Local pickup is available at no charge. For courier/freight delivery, please contact us for a shipping quote before completing your order — calvin.coetzee@batterypowered.co.za / +27 72 370 9080.
This is second-hand equipment being sold as-is. Local pickup is available at no charge. For courier/freight delivery, please contact us for a shipping quote before completing your order — calvin.coetzee@batterypowered.co.za / +27 72 370 9080.
