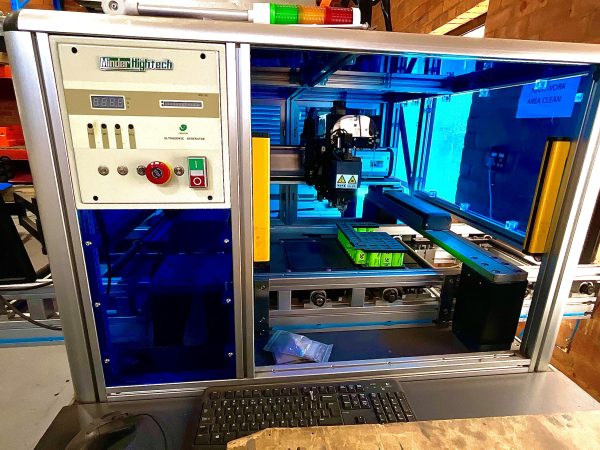

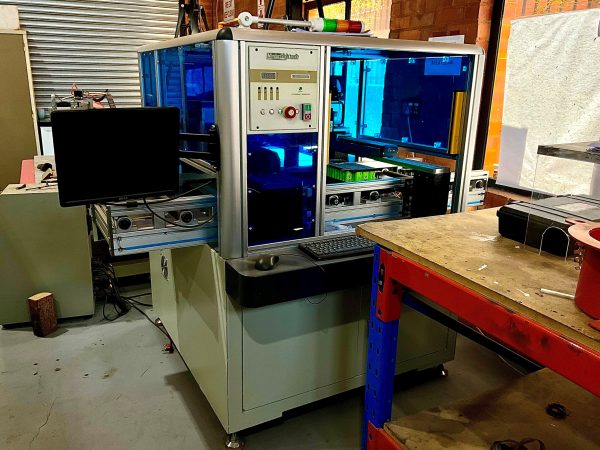

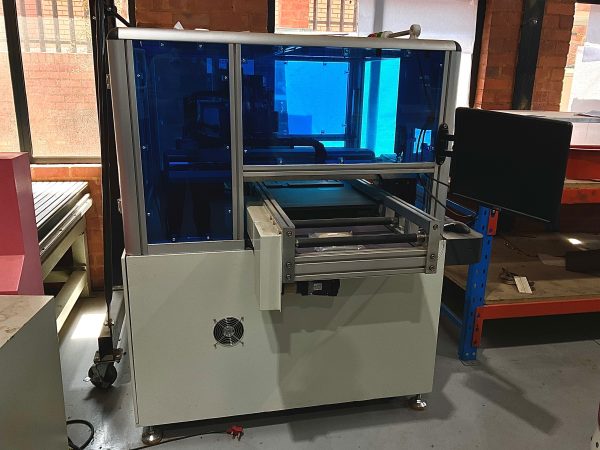

Automatic heavy Wire Bonder MDAWB-4NL400

NEW MDAWB SERIES operation manual

Main application:

18650,26800,21700 cells

lithium battery wire bonding or other connections

Advantages:

1, Uses rotary bonding head.

2, Digital & automatic frequency tracking ultrasonic system.

3, Digital pressure adjustment system.

4, Advance pattern recognizing system.

5, Full closed-loop motion control system.

6, Bad bonding or wire feeding block etc.

7, Full error alarm, ensure bonding quality.

8, Optional automatic bond tester.

9, Manual upload, automatic recognition and bonding, manual download.

Specifications:

Power: 220v,50Hz,800w.

Suit for aluminum wire:125-500um(5-20mil)

Frequency: 60kHz.

Power: 0-30w. automatic changing between first bonding and second bonding.

X axis accuracy: 0.02mm.

Time: 10-500ms. (multi-channel.)

Bonding pressure: 50-1200 (multi-channel)

Bonding speed: 2s/wire depending on another situation.

Working area:

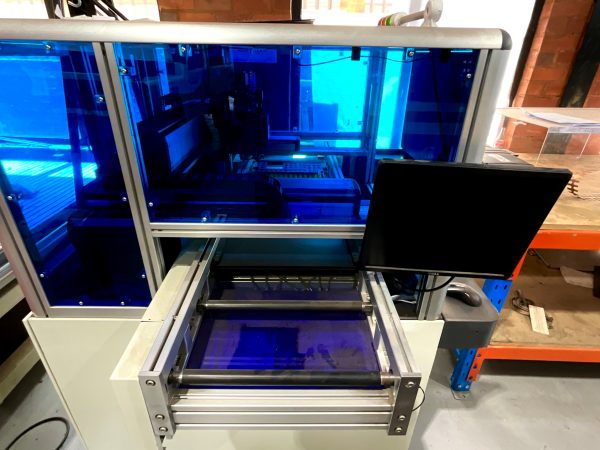

XY:400*800mm (with Rail transportation from left to right, can connect to production line).

Z:50mm.

C: +-90degree.
